If you want to modify Coleman Sundome for rooftop tent conversion on a truck bed, the short answer is: yes, it can be done as a budget DIY platform tent, but it requires a flat plywood deck mounted to the bed rails, reinforced floor protection under the original Sundome bathtub, shorter shock-corded poles or sleeve reinforcement, and a permanent tie-down system that replaces the stock stakes. The Sundome was engineered as a 3-season ground tent, so the conversion is about creating a stable elevated floor, weatherproofing the underside, and securing the tent against highway wind loads when the truck is moving between campsites. Below is the complete 2026 build guide, with gear picks, a comparison table, and the trade-offs you should know before you cut a single piece of lumber.
Why People Convert a Coleman Sundome Instead of Buying a Hard-Shell Rooftop Tent
A factory hard-shell rooftop tent runs $1,500-$4,000, plus a bed rack rated for 600-800 lbs of dynamic load. A Coleman Sundome 4P costs under $130, and most truck owners already have one in the garage. The conversion appeals to weekend campers who want the elevated-sleeping advantage (no ground moisture, no critters, faster setup once the platform is built) without the price tag of a Smittybilt, iKamper, or Roofnest.
The catch is that the Sundome was never designed for elevated mounting. Its floor is a single-layer coated polyethylene bathtub, the poles are fiberglass shock-corded sections, and the guy-out points are sewn for ground staking. To modify Coleman Sundome for rooftop tent conversion safely, you need to compensate for every one of those design assumptions.
Step-by-Step: The Truck Bed Platform Build
Step 1 - Measure the bed and choose a platform size
A standard 6.5-ft truck bed measures roughly 78 in long by 64 in wide between the wheel wells. The Coleman Sundome 4P footprint is 9x7 ft (108x84 in), so the tent will overhang the bed on all sides. You have two options: build a platform that matches the tent footprint and cantilevers over the cab and tailgate, or downsize to the Sundome 2P (5x7 ft) which fits cleanly inside most short beds. The 2P route is dramatically safer and is what most successful builds use.
Step 2 - Cut and seal the deck
Use 3/4-in marine-grade plywood, sealed on both faces with two coats of spar urethane. Round the corners with a jigsaw to avoid tearing the Sundome's floor coating when the tent is packed and unpacked. Add a layer of 1/4-in closed-cell foam or interlocking gym mat on top - this protects the bathtub floor from abrasion and adds a small thermal break against the cold steel of the truck bed.
Step 3 - Anchor to the bed
The platform must bolt through the stock tie-down points or to a bed-rail rack system. Ratchet straps alone are not sufficient for highway speeds. Use four 3/8-in eye bolts through the plywood, each rated for at least 500 lbs working load, and pass them through grade-8 bolts that thread into the bed's factory anchor points. If your bed has a spray-in liner, drill carefully and seal the holes with marine sealant.
Step 4 - Re-engineer the tent's attachment system
Stock Sundome stakes are useless on plywood. Drill 12-15 evenly spaced holes around the platform perimeter and install 1/4-in U-bolts or pad eyes. Replace the stock guy lines with 550 paracord or 3mm reflective guy line, tied to the pad eyes with bowlines. Add a continuous strap around the tent base at the bathtub seam line to prevent uplift in crosswinds when stationary.
Step 5 - Weatherproof the underside
The original rainfly only covers the upper half of the Sundome. Water blown sideways will hit the exposed mesh windows. Add a wraparound tarp or a custom-sewn skirt that drops from the rainfly edge to the platform. A simple 8x10 silnylon tarp folded and clipped works for most setups.
Top Gear Picks for Your Conversion Build
The Coleman Sundome itself is the centerpiece, but you will want supporting gear for the platform, the awning, and a backup sleep system in case the build fails its first storm test. Here are the most relevant pieces from the 2026 Amazon catalog.
Backup Dome Tent - Amazon Basics 3-Season Dome Camping Tent with Rainfly
Before you commit to cutting up your Sundome, do a dry run with a sacrificial tent that has nearly identical geometry. The Amazon Basics 3-Season Dome is structurally similar to the Sundome - fiberglass poles, polyester walls, full rainfly - and costs less than the Coleman. Use it to test your platform anchor points, drill positions, and tarp skirting before you commit to modifying your primary tent. It also works as a ground-based base camp tent for trips where you do not want to deploy the rooftop setup. Check the Amazon Basics 3-Season Dome on Amazon.
Awning and Shade - CROWN SHADES 10x10 Pop Up Canopy Tent with Pockets
Once your rooftop tent is deployed, you still need a covered ground area for cooking, gear staging, and shade. A 10x10 pop-up canopy is the standard companion. The CROWN SHADES model with built-in pockets keeps small items (headlamps, keys, sunscreen) off the truck bed surface. Set it up next to the driver-side door so you can step out of the tent at the top of the ladder and immediately walk under cover. View the CROWN SHADES canopy on Amazon.
Easier-Deploy Canopy - CROWN SHADES 10x10 Pop Up Canopy CenterLok One-Push
If you camp solo, the CenterLok one-push variant of the CROWN SHADES canopy is worth the upgrade. A standard pop-up requires two people to deploy without binding, but the CenterLok lets a single camper push the center hub and lock all four legs in one motion. This matters because once your truck-bed tent is up, you do not want to climb back down and spend 15 minutes wrestling a canopy. See the CenterLok CROWN SHADES on Amazon.
Privacy and Changing - Wolfwise Pop Up Shower/Changing Tent
A rooftop tent sits 4-5 feet off the ground - great for sleeping, awkward for changing clothes. A pop-up changing tent gives you a private vertical space at ground level. The Wolfwise model deploys in seconds and doubles as a portable shower enclosure when paired with a solar shower bag. It is a small piece of kit that disproportionately improves comfort on multi-day trips. Browse the Wolfwise changing tent on Amazon.

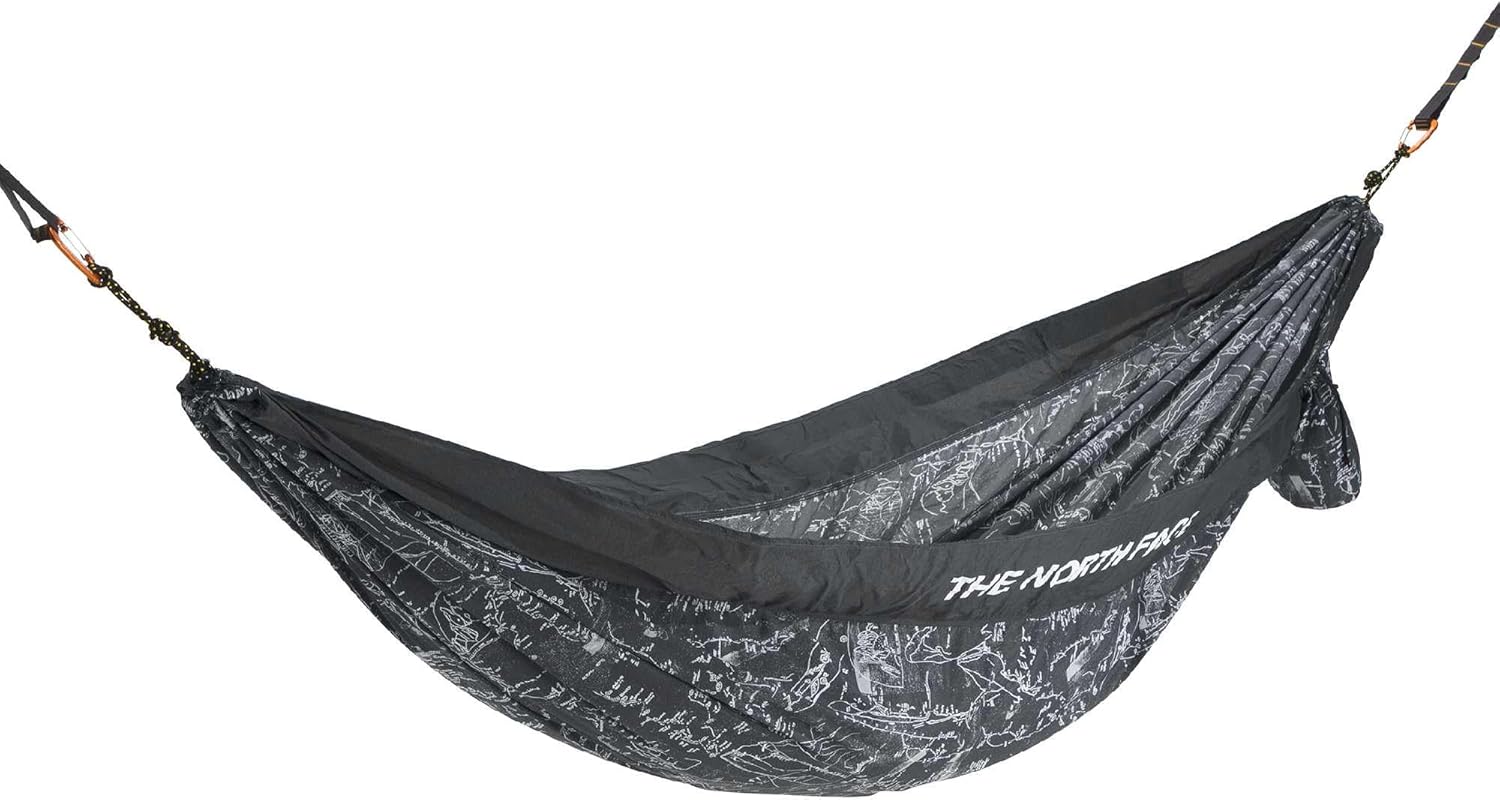

Backup Sleep System - Wise Owl Outfitters Camping Hammock
If your rooftop conversion fails in the field - a torn floor, a snapped pole, a storm that compromises the tarp skirt - you need a backup sleep plan. A lightweight camping hammock packs to the size of a grapefruit and rigs between any two trees in under 5 minutes. The Wise Owl Outfitters model includes tree straps rated for 500 lbs and is the most common emergency-backup choice for vehicle campers. Check the Wise Owl hammock on Amazon.
Comparison Table - Supporting Gear for the Build
| Product | Role in Build | Setup Time | Best For |
|---|---|---|---|
| Amazon Basics 3-Season Dome | Test tent / backup | 10-15 min | Dry-running anchor points |
| CROWN SHADES 10x10 Canopy (Pockets) | Ground shade / cook area | 2-3 min, 2 people | Group camping |
| CROWN SHADES CenterLok 10x10 | Ground shade / cook area | 60-90 sec, 1 person | Solo camping |
| Wolfwise Changing Tent | Privacy at ground level | Under 30 sec | Multi-day trips |
| Wise Owl Hammock | Backup sleep system | 5 min | Emergency fallback |
Safety Limits You Cannot Engineer Around
Even the best DIY conversion has hard limits. Do not drive with the Sundome erected on the platform - the wind load at 40 mph will destroy the fiberglass poles, regardless of how well you guy it out. The tent must be packed flat against the platform during transit and only deployed at the campsite. This is the fundamental difference between a DIY conversion and a real hard-shell rooftop tent, which has aluminum or composite shells engineered for highway loads.
Weight is the second limit. A two-adult sleeping load on a Sundome 2P plus bedding is roughly 350-450 lbs. Your truck's bed rails and tie-down points are rated for static loads, but the dynamic load from someone climbing up the ladder can spike well above the static figure. Inspect every bolt and weld point quarterly.
Wind is the third. A Sundome with a tarp skirt and proper guy lines is rated to maybe 25-30 mph sustained. A real rooftop tent shrugs off 40-50 mph. If the forecast calls for high winds, sleep on the ground in your backup 3-season tent instead.
Cost Breakdown for the Full Build
A realistic 2026 budget looks like this: Coleman Sundome 2P ($90), 3/4-in marine plywood and hardware ($120-150), bed rail mounting kit ($60-200 depending on truck), tarp skirting and paracord ($40), telescoping ladder ($80-120), and miscellaneous sealant, foam, and tools ($50). Total: roughly $440-680 for a functional conversion - a fraction of even an entry-level hard-shell rooftop tent. Compare that to our 2026 rooftop tent buyer's guide where the cheapest pre-built unit is $1,400.
When You Should Skip the Conversion
If you camp more than 15 nights per year, drive long highway stretches between camp spots, or sleep in regions with regular high winds or heavy rain, the DIY route will frustrate you. The setup-and-teardown cycle for a tarp-skirted platform tent is 25-40 minutes per side - a hard-shell rooftop tent deploys in under 5. For occasional weekend use within 100 miles of home, the conversion is a great project. For full van-life or overland use, buy the real thing. Read our truck bed camping setup comparison for a side-by-side of every approach.
Frequently Asked Questions
Can I modify Coleman Sundome for rooftop tent conversion without a truck bed rack?
Yes, if your truck has factory bed tie-down points rated for at least 500 lbs each. Bolt a plywood platform directly to those anchors using grade-8 hardware. A dedicated bed rack adds rigidity and lets the platform clear the wheel wells, but it is not strictly required for a static (camp-only) deployment of a Sundome.
What size Coleman Sundome works best for a short bed truck conversion?
The Sundome 2P (5x7 ft) fits inside a 6.5-ft short bed without overhanging the cab or tailgate. The 3P (7x7 ft) requires the tailgate down and a cantilever platform. The 4P and 6P sizes overhang too much for safe rooftop use and should be left as ground tents.
Do I need to reinforce the Coleman Sundome floor for elevated use?
Yes. Add a 1/4-in closed-cell foam pad between the tent floor and the platform, plus a ground-tarp footprint cut to the exact tent dimensions. This prevents abrasion against the plywood edges and adds a small R-value to fight cold-soak from the truck bed steel below.
How do I keep the Sundome from blowing off the platform in wind?
Replace stock stake-out points with U-bolts or pad eyes drilled through the plywood every 12-18 inches around the perimeter. Tie the tent down with 3mm guy line at every attachment, then add a continuous ratchet strap around the bathtub seam. With this system, the tent stays put up to about 30 mph sustained wind.
Can I leave the Sundome assembled on the truck bed during transit?
No. The Sundome's fiberglass poles cannot handle highway wind loads and will snap or splinter. Pack the tent flat against the platform and re-erect at the campsite. This is the single biggest difference between a DIY conversion and a hard-shell rooftop tent.
What ladder works for climbing into a converted Sundome rooftop tent?
A 7-8 ft aluminum telescoping ladder rated to 330 lbs is standard. Hook the top rung over the platform's leading edge and lash it to a U-bolt with paracord. Do not use a step stool or folding chair - the dynamic load when climbing exceeds what those supports can handle.
Is a converted Coleman Sundome legal to use on public roads?
The conversion itself is legal as long as the packed tent and platform do not exceed your truck's cargo height limits (typically 13.5 ft total vehicle height in most US states) and do not obstruct your taillights or license plate. Deployed use is restricted to private property and established campsites - you cannot sleep in a rooftop tent on a public roadway.
